DESIGN:

The VILLOAR 2 BANCO and PORTIFORT structures are designed and manufactured in accordance with the requirements of the current Standards, NBE EA-95 "Estructuras de Acero en Edificación" y NBE AE-88 "Acciones en la Edificación". These standards are complemented when necessary with the recognised specific application standards NTE, UNE, EN, ISO, DIN, ASME and AWS. Añuri’s Technical Office uses advanced software tools in order to optimise the dimensions of each component which goes to make up the structure. Many of these computer programmes were specially developed for Añuri’s structural systems and allow it to respond efficiently to the requirements of each project.

The Technical Office also uses the ANSYS programme for Finite element analysis. The features and reliability of this programme, made by the North American firm ANSYS Inc., is internationally recognised

Among other things, ANSYS means that Añuri can make precise analysis of web and flange local buckling and lateral torsional buckling of built up plate members of the frames. Depending on the project at hand, detailed analyses of other structural elements, tension concentration studies, assembly process simulation, etc.

 The design programmes normally used for structures do not cater for all of these factors, making AÑURI, S.A. a pioneer in the field.

Modelling AVI (265K) (click to see animation)

AVI (275K) (click to see animation)

 MATERIALS:

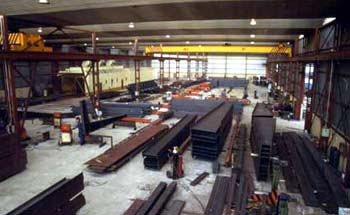

With the exception of purling, auxiliary profiling and components of little structural relevance, which supplied at normal market quality, Añuri’s structures use nothing but S235 and 275 EN 10025:94 quality, hot-rolled structural steel profiling.
