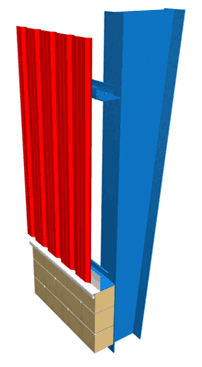

The facing consists of 0.6-mm thick, pre-painted, grooved, steel plating. This is supported on cold-profiled, “C”-section purling fixed in turn to the façade columns.
The plating is set out in rows parallel to the floor from the height specified by the customer to the roof.

single plating

The plating is fixed to the purling framework with self-threading and/or self-tapping screws with nylon heads in the same colour as the plating itself.

Normal finishes:

  Pre-painted:
An epoxy resin-based coating is applied to the two faces of a reel of galvanised steel. The outer face is then coated with a silicon polyester resin-based lacquer in accordance with the specifications set out in UNE 36150 - EN 10169.
Suitable for low corrosion atmospheres and aesthetically demanding projects.

The range of available colours is:

Oyster White Nº: 1000	Pyrenees White Nº:1006	Bidasoa cream Nº:2002	Sand Nº:2000	Pearl Grey Nº:5001

Metallic Silver Nº:5023	Baztán Red Nº:7002	Tile Red Nº:7001	Coral Red Nº:7004	Baracaldo Blue Nº:4009

Lake Blue Nº:4000	Navarran Green Nº:3000	Light Green Nº:3001	Tobacco Nº:2005	Black Nº:0000

For other colours and finishes (Plastisol or PVF2), consult possibilities.
