TECHNICAL SUPPORT: Villoar 2 Banco

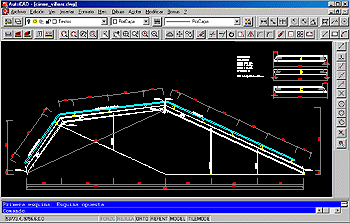

VIGA BANCO (Banco beam) drawing:

Programme for AutoCAD (versions 14 & 2000) to draw ‘bench beams’ according to the data entered (modulation, roofing material, translucent material...).

Download (viga banco (banco beam) & villoar floors): villoar.zip
File size: 2.1 Mb.

N.B. Select the right option for the version of AutoCAD on your computer. See instructions of use
For enquiries regarding the programme, e-mail to: informatica@anuri.com

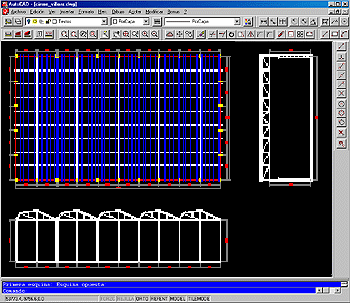

VILLOAR FLOORS drawing:

Programme for AutoCAD (versions 14 & 2000) to draw villoar building floor according to the data entered (modules,  length, height, number of naves, snow, gantry crane...).

Download (viga banco (banco beam) & villoar floors): villoar.zip
File size: 2.1 Mb.

N.B. Select the right option for the version of AutoCAD on your computer. See instructions of use
For enquiries regarding the programme, e-mail to: informatica@anuri.com

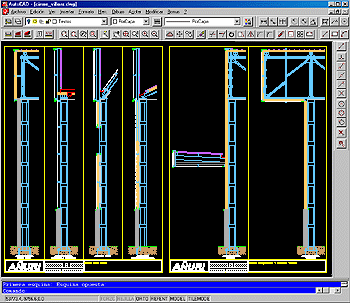

V-2 B Façade sections:

File .DWG (.ZIP) which includes façade construction sections for the most common systems (walls in single plating, “on site” sandwich, horizontal plating... “false terraces”, gables, small projections, canopies...).

Download: cierre_villoar.zip
File size: 730 Kb.



N.B. The shape and size of the finishes are those for standard AÑURI designs. These may be modified in accordance with each project’s specific requirements.
